PVC Vinyl Railing FM-601 With 3-1/2″x3-1/2″ T Rail For Porch, Balcony, Decking, Stair

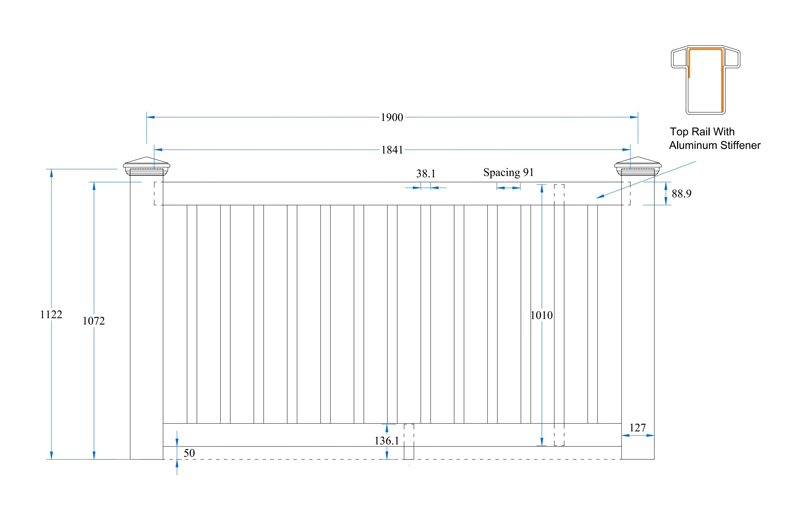

Drawing
1 Set Fence Includes:
Note: All Units in mm. 25.4mm = 1"
| Material | Piece | Section | Length | Thickness |
| Post | 1 | 127 x 127 | 1122 | 3.8 |
| Top Rail | 1 | 88.9 x 88.9 | 1841 | 2.8 |
| Bottom Rail | 1 | 50.8 x 88.9 | 1841 | 2.8 |
| Aluminum Stiffener | 1 | 44 x 42.5 | 1841 | 1.8 |
| Picket | 13 | 38.1 x 38.1 | 1010 | 2.0 |
| Peg | 1 | 38.1 x 38.1 | 136.1 | 2.0 |
| Post Cap | 1 | New England Cap | / | / |
Product Parameter
| Product No. | FM-601 | Post to Post | 1900 mm |
| Fence Type | Railing Fence | Net Weight | 14.95 Kg/Set |
| Material | PVC | Volume | 0.060 m³/Set |
| Above Ground | 1072 mm | Loading Qty | 1133 Sets /40' Container |
| Under Ground | / |
Profiles
127mm x 127mm
5"x5"x 0.15" Post
50.8mm x 88.9mm
2"x3-1/2" Open Rail
88.9mm x 88.9mm
3-1/2"x3-1/2" T Rail
38.1mm x 38.1mm
1-1/2"x1-1/2" Picket
Post Caps
External Cap
New England Cap
Stiffeners
Aluminum Post Stiffener
Aluminum Post Stiffener
L sharp aluminum stiffener for top 3-1/2”x3-1/2” T rail is available, with both 1.8mm (0.07”) and 2.5mm (0.1”) wall thicknesses. FenceMaster welcomes customers to customize top rails with different stiffeners, and we can also customize powder coated aluminum saddle posts, aluminum corner and end posts. Please feel free to contact our sales staff for more information.
Outdoor Leisure Space
After a busy day of work, people hope to have a good place to relax and enjoy leisure. It is an ideal choice to build a decking with beautiful railing in your own backyard. FM-601 provides a safer guarantee for enjoying outdoor leisure time. It not only brings us safety, but also brings beautiful vision to the courtyard and greater added value to the property. Compared with the cold feeling of metal railing, vinyl railing is warmer and makes people more approachable. It is an ideal choice for more and more home owners.
