PVC Aluminum Railing FM-602 For Porch, Balcony, Decking, Stair

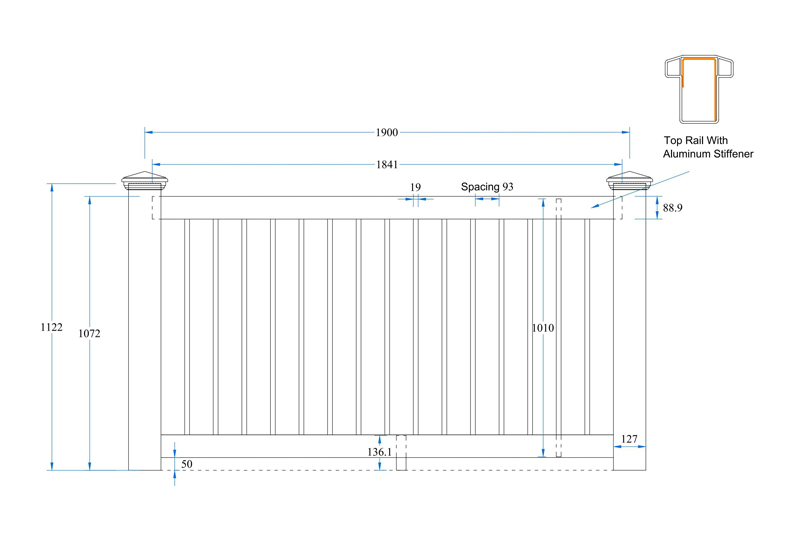

Drawing
1 Set Fence Includes:
Note: All Units in mm. 25.4mm = 1"
Material | Piece | Section | Length | Thickness |
Post | 1 | 127 x 127 | 1122 | 3.8 |
Top Rail | 1 | 88.9 x 88.9 | 1841 | 2.8 |
Bottom Rail | 1 | 50.8 x 88.9 | 1841 | 2.80 |
Aluminum Stiffener | 1 | 44 x 42.5 | 1841 | 1.8 |
Aluminum Picket | 15 | Φ19 | 1010 | 1.2 |
Peg | 1 | 38.1 x 38.1 | 136.1 | 2.0 |
Post Cap | 1 | New England Cap | / | / |
Product Parameter
Product No. | FM-602 | Post to Post | 1900 mm |
Fence Type | Railing Fence | Net Weight | 11.86 Kg/Set |
Material | PVC | Volume | 0.045 m³/Set |
Above Ground | 1072 mm | Loading Qty | 1511 Sets /40' Container |
Under Ground | / |
Profiles

127mm x 127mm
5"x5"x 0.15" Post

50.8mm x 88.9mm
2"x3-1/2" Open Rail

88.9mm x 88.9mm
3-1/2"x3-1/2" T Rail

19mm x 19mm
3/4"x3/4" Aluminum Baluster
Post Caps

External Cap

New England Cap
Stiffeners

Aluminum Post Stiffener

Aluminum Post Stiffener
L sharp aluminum stiffener for top 3-1/2”x3-1/2” T rail is available, with both 1.8mm (0.07”) and 2.5mm (0.1”) wall thicknesses. FenceMaster welcomes customers to customize top rails with different stiffeners, and we can also customize powder coated aluminum saddle posts, aluminum corner and end posts. Please feel free to contact our sales staff for more information.
Aluminum Balusters

FenceMaster accepts customization of various balusters. The regular material is 6063, T5, and we can also make balusters of other aluminum alloy models. The outer layer is powder coated, and FenceMaster provides a 10-year guarantee against fading.
Aluminum Railings


FenceMaster is engaged in the manufacture of high-quality PVC fences. However, many of our customers, as fencing, decking and railing contractors, not only provide consumers with PVC fences and railings, but also provide aluminum fences and railing products. In order to meet the ever-changing needs of our customers, FenceMaster has provided such customers with excellent quality aluminum railings since 2015, like aluminum picket railings, aluminum mesh railings (square mesh and diagonal diamond mesh infills). Since then, FenceMaster has relied on its excellent quality of products and service, has become a high-quality supplier for many fencing, railing and decking companies around the world.
