Scalloped Picket Top PVC Vinyl Semi Privacy Fence For Residential Area

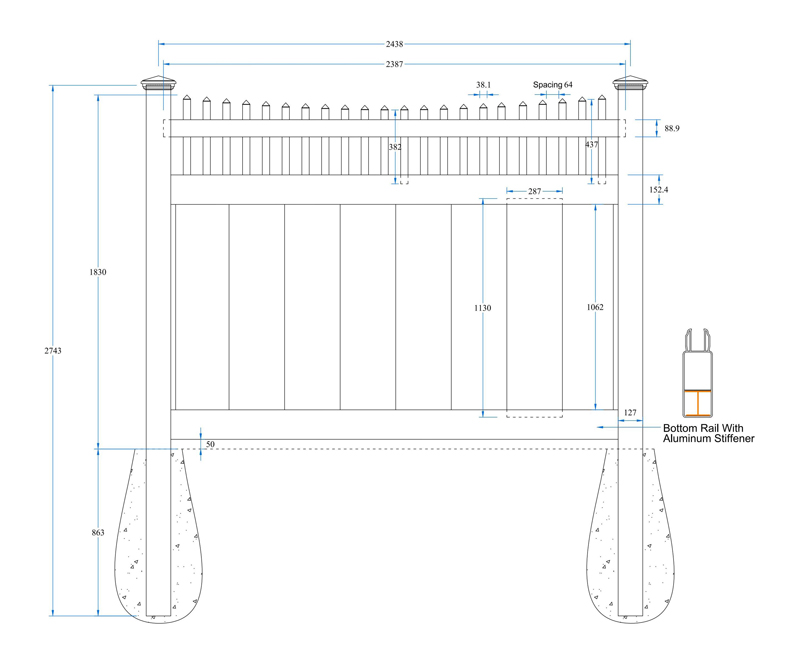

Drawing
1 Set Fence Includes:
Note: All Units in mm. 25.4mm = 1"
| Material | Piece | Section | Length | Thickness |
| Post | 1 | 127 x 127 | 2743 | 3.8 |
| Top Rail | 1 | 50.8 x 88.9 | 2387 | 2.8 |
| Middle & Bottom Rail | 2 | 50.8 x 152.4 | 2387 | 2.3 |
| Picket | 22 | 38.1 x 38.1 | 382-437 | 2.0 |
| Aluminum Stiffener | 1 | 44 x 42.5 | 2387 | 1.8 |
| Board | 8 | 22.2 x 287 | 1130 | 1.3 |
| U Channel | 2 | 22.2 Opening | 1062 | 1.0 |
| Post Cap | 1 | New England Cap | / | / |
| Picket Cap | 22 | Sharp Cap | / | / |
Product Parameter
| Product No. | FM-204 | Post to Post | 2438 mm |
| Fence Type | Semi Privacy | Net Weight | 38.45 Kg/Set |
| Material | PVC | Volume | 0.162 m³/Set |
| Above Ground | 1830 mm | Loading Qty | 419 Sets /40' Container |
| Under Ground | 863 mm |
Profiles
127mm x 127mm
5"x5" Post
50.8mm x 152.4mm
2"x6" Slot Rail
22.2mm x 287mm
7/8"x11.3" T&G
50.8mm x 88.9mm
2"x3-1/2" Open Rail
38.1mm x 38.1mm
1-1/2"x1-1/2" Picket
22.2mm
7/8" U Channel
Post Caps
3 most popular post caps are optional.
Pyramid Cap
New England Cap
Gothic Cap
Picket Cap
1-1/2"x1-1/2" Picket Cap
Stiffeners
Post Stiffener ( For gate installation)
Bottom Rail Stiffener
Gates
FenceMaster offers walk and driving gates to match the fences. The height and width can be customized.
Single Gate
Single Gate
For more information of profiles, caps, hardware, stiffeners, please check the accessory page, or feel free to contact us.
Package
Considering that the lengths of the FM-204 vinyl fence pickets are different, will there be any difficulties during installation? The answer is no. Because when we pack these pickets, we will mark them with serial numbers according to the length, and then pack the pickets of the same length together. This will make it easier to assemble.
