PVC Semi Privacy Fence FenceMaster FM-201 With Picket Top

Short Description:

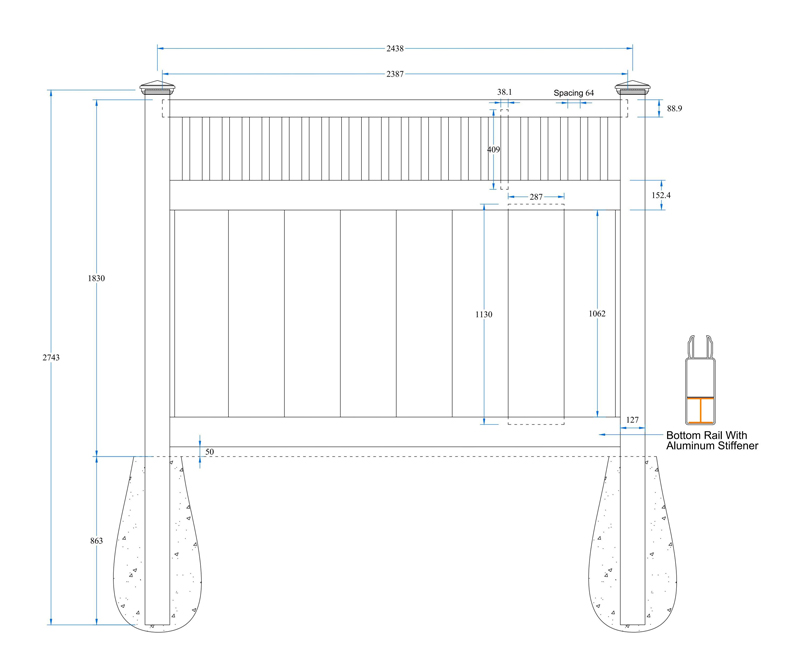

FM-201 is a semi privacy PVC fence, 2.44 meters wide from post to post, and 1.83 meters high above ground, consists of post, rails, boards and top pickets. The board surface is designed with grooves for simplicity and elegance. There are more rails and boards are optional, like 1-1/2”x5-1/2”, 2”x6”, 2”x6-1/2”, and 2”x7” Slot Rails, and 7/8”x6”, 1”x6” and 7/8”x11.3” boards (T&G).

Product Detail

Product Tags



1 Set Fence Includes:

Note: All Units in mm. 25.4mm = 1"

Material Piece Section Length Thickness
Post 1 127 x 127 2743 3.8
Top Rail 1 50.8  x 88.9 2387 2.8
Middle & Bottom Rail 2 50.8  x 152.4 2387 2.3
Picket 22 38.1 x 38.1 409 2.0
Aluminum Stiffener 1 44 x 42.5 2387 1.8
Board 8 22.2 x 287 1130 1.3
U Channel 2 22.2 Opening 1062 1.0
Post Cap 1 New England Cap / /

Product Parameter

Product No. FM-201 Post to Post 2438 mm
Fence Type Semi Privacy Net Weight 38.69 Kg/Set
Material PVC Volume 0.163 m³/Set
Above Ground 1830 mm Loading Qty 417 Sets /40' Container
Under Ground 863 mm



127mm x 127mm
5"x5" Post


50.8mm x 152.4mm
2"x6" Slot Rail


22.2mm x 287mm
7/8"x11.3" T&G


50.8mm x 88.9mm
2"x3-1/2" Rib Rail


38.1mm x 38.1mm
1-1/2"x1-1/2" Picket


7/8" U Channel


3 most popular post caps are optional.


Pyramid Cap


New England Cap


Gothic Cap



Post Stiffener ( For gate installation)


Bottom Rail Stiffener


FenceMaster offers walk and driving gates to match the fences. The height and width can be customized.

gate single open

Single Gate

gate double open

Double Gate

For more information of profiles, caps, hardware, stiffeners, please check the related pages, or feel free to contact us.

Why choose FenceMaster PVC fences?

FenceMaster PVC fences are a more and more popular choice worldwide for a variety of reasons.

It’s very durable and resistant to weather and other environmental factors. They do not rust, fade, or rot like some other fencing materials, which can make them a good long-term investment.

They require very little maintenance compared to other materials. They do not need to be painted, stained, or sealed, and can be easily cleaned with soap and water.

FenceMaster PVC fences come in a wide range of colors, styles, and sizes, making them a versatile option for a variety of properties and aesthetics.

What’s more, FenceMaster PVC fences can be more affordable than other materials like wood or wrought iron, especially in the long run because of their low maintenance requirements.

It is worth mentioning that PVC fences are made from recyclable materials, making them an environmentally friendly option.

Overall, the combination of durability, low maintenance, versatility, affordability, and eco-friendliness make FenceMaster PVC fences an attractive option for many homeowners and property owners worldwide nowadays.

Global Project Show

FenceMaster Project at Country Club, USA.

The club features a large swimming pool inside, and it goes without saying that PVC fences are preferred for privacy and long-lasting performance.
