PVC Square Lattice Fence FM-701

Short Description:

FM-701 is a PVC lattice fence. Its top and bottom rails are 2″x3-1/2″ rails with a 1/2″ opening. The profile to make the lattice is 1/4″x1-1/2″. The lattice is made up of PVC glued profiles. The contact place between lattice and post is trimmed with 1/2” Opening U channel, which makes the fence look more beautiful.

Product Detail

Product Tags



1 Set Fence Includes:

Note: All Units in mm. 25.4mm = 1"

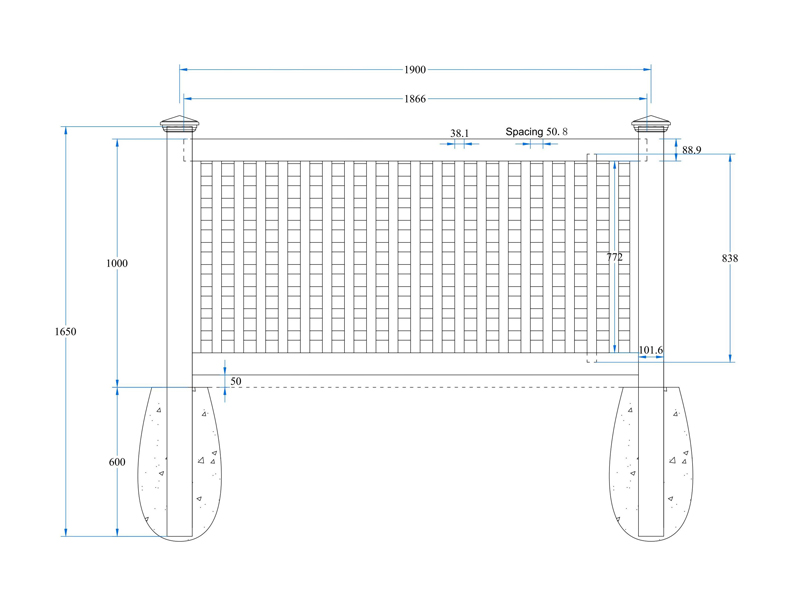

Material Piece Section Length Thickness
Post 1 101.6 x 101.6 1650 3.8
Top & Bottom Rail 2 50.8 x 88.9 1866 2.0
Lattice 1 1768 x 838 / 0.8
U Channel 2 13.23 Opening 772 1.2
Post Cap 1 New England Cap / /

Product Parameter

Product No. FM-701 Post to Post 1900 mm
Fence Type Lattice Fence Net Weight 13.22 Kg/Set
Material PVC Volume 0.053 m³/Set
Above Ground 1000 mm Loading Qty 1283 Sets /40' Container
Under Ground 600 mm



101.6mm x 101.6mm
4"x4" Post


50.8mm x 88.9mm
2"x3-1/2" Lattice Rail


12.7mm Opening
1/2" Lattice U Channel


50.8mm Spacing
2" Square Lattice


3 most popular post caps are optional.


Pyramid Cap


New England Cap


Gothic Cap


aluminum stiffener1

Post Stiffener ( For gate installation)

aluminum stiffener3

Bottom Rail Stiffener

PVC Vinyl Lattice

PVC Lattice has a wide range of uses. It can be used as the infill of the fence or as a part of the fence for decorative purposes, such as FM-205 and FM-206. It can also be used to make pergola and arbor. FenceMaster can customize lattices of different sizes for customers, for example: 16"x96", 16"x72", 48"x96" and so on.

Cellar PVC Lattice

FenceMaster provides two cellular PVC profiles for fabricating lattices: 3/8"x1-1/2" lattice profile and 5/8"x1-1/2" lattice profile. They are both full solid cellular PVC profiles with high density, used to make high-end cellular fences. All FenceMaster cellular PVC profiles are sanded to better hold the paint. Cellular PVC fences can be painted in various colors, such as: white, light tan, light green, gray and black.

cellular pvc fence1

Light Tan

cellular pvc fence2

Light Green

cellular pvc fence3
